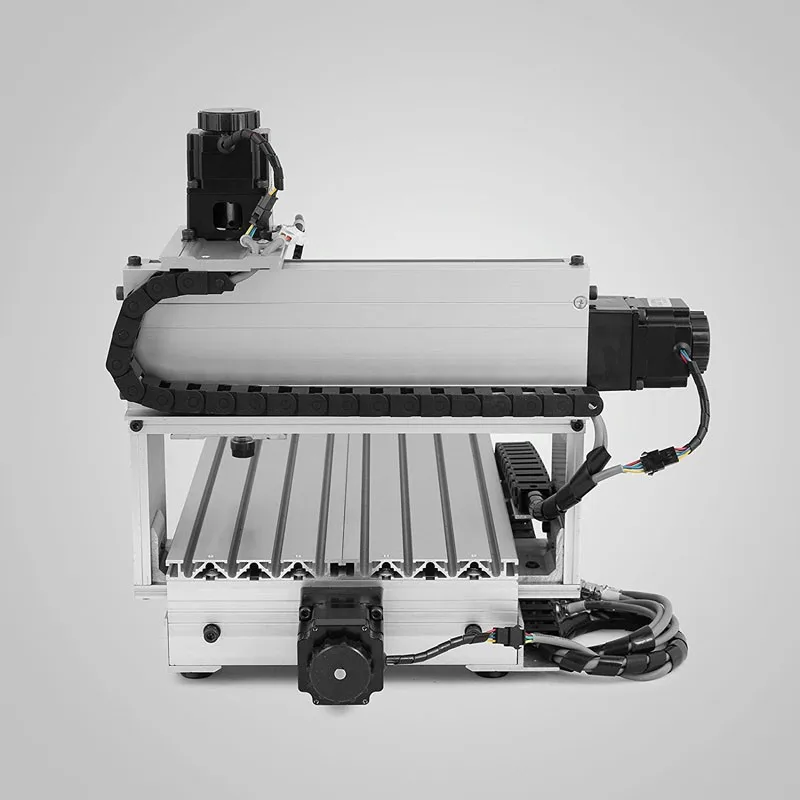

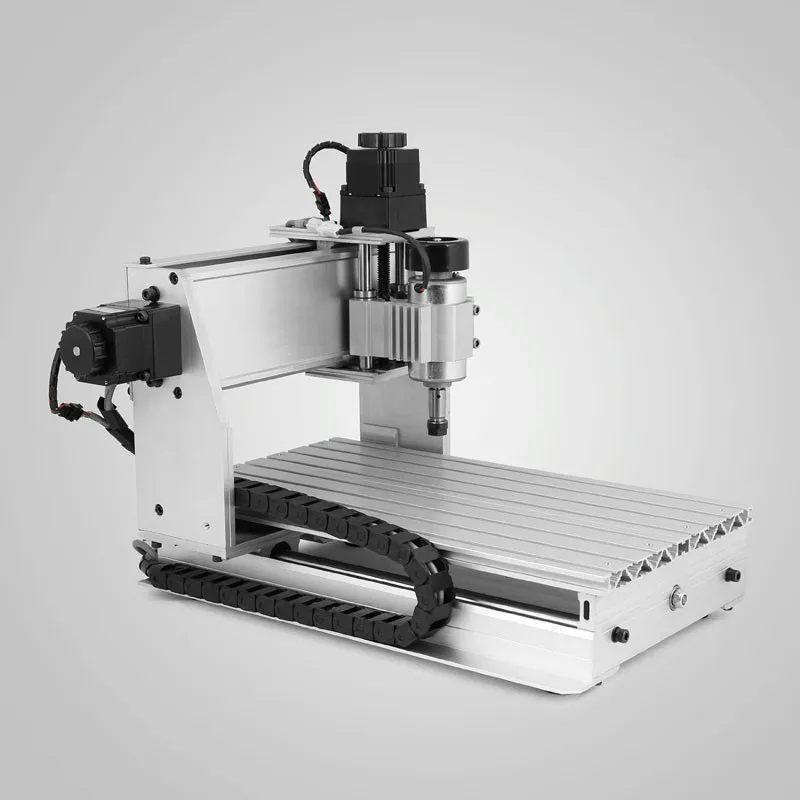

Mini Machine à 3 axes 3020T-D300 220v moteur de broche de puissance cc Machine de gravure CNC 0.3w broche refroidie par Air pour routeur CNC
| Machine Dimensions: | 525X400X370mm |
|
Equipment: |
6061 and 6063 hard aluminum alloy (The unique and dedicated mold extrusion profiles, let the counterfeiters dwarf.) |
| Engraving location: | 300X200mm |
| Z axis travel: |
45mm, the engraving depth depends on the length of the tool edge |
| Acceptable material thickness: | ≤ 60mm |
| Rail Type: | Chromeplate shaft + linear bearings, (Surface hardening 61HRC) |
| Screw type: | Spiral screw |
| Spindle motor: | 230W / 11000r / min (very small noise) |
| Clamp type: | ER11, 1/8 “(3.175mm) clamp |
| Stepper Motor and Drive: | Two-phase hybrid stepper motor, 1.8a / phase, 40N. cm, 8 segment workout. |
| Maximum operating speed: | 4000 mm / min (engraving speed: 300-3000 mm / min) |
| Repeated positioning accuracy: | 0.04mm |
| Communication interface: | Usb port (Must use desktop computer, Does not support laptop) |
| Software Compatibility: | Mach3 / Emc2 / Kcam, (Type3, Wentai, ArtCAM, coppercam) |
| Order code: | G code /. nc /. ncc /. tab /. txt |
| Machine Weight: | 22 kg |
| Can’t add 4th axis; |
|
